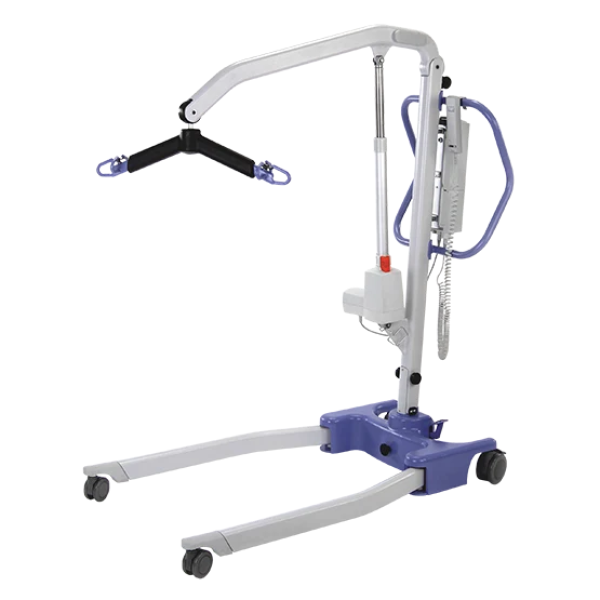

Lifting Hoist Oxford Advance Folding-Portable Lift (Kg)

Features

• One of the most functional in its class today.
• Especially suited to home care and small nursing institutions where space sometimes is simply not available
• Allows a user to travel outside of the confines of their own home.

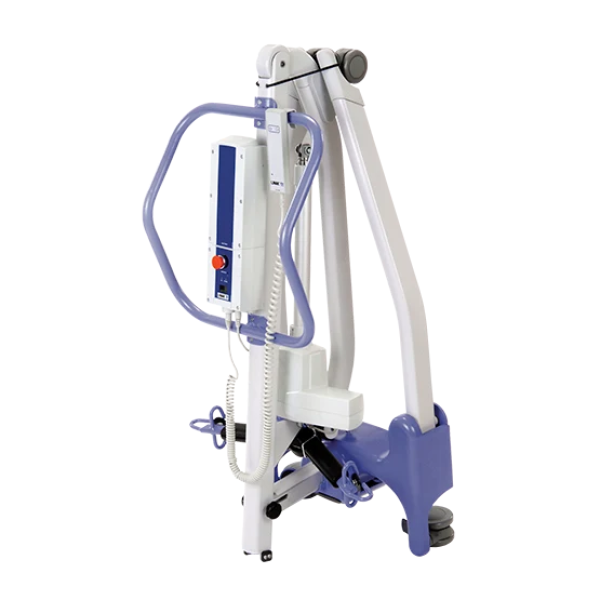

• Compact folding design for easy transportation and storage.
• Comes with a Smart Monitor diagnostic and service controls as standard.
• Ergonomic design considerations and interaction points.
• ‘Swan-neck’ leg design ensures excellent access around furniture with an optional shallow 4-point positioning cradle

Specifications

• Safe Working Load 341 Ibs  155 Kgs
• Maximum Overall Length 51.0 Inches  1300 mm
• Minimum Overall Length 49.0 Inches  1250 mm
• Maximum Overall Height 73.0 Inches  1860 mm
• Minimum Overall Height 53.5 Inches  1360 mm
• Height (Folded) 17.1 Inches  450 mm
• Depth (Folded) 46.4 Inches  1180 mm
• Width 21.6 Inches  550 mm
• Spreader Bar – Maximum Height 66.5 Inches  1690 mm
• Spreader Bar – Minimum Height (Usable) 15.3 Inches  390 mm
• Height At Maximum Reach 46.0 Inches  1170 mm
• Reach At Maximum Height 25.6 Inches 650 mm
• Reach At Minimum Height 13.7 Inches  350 mm
• Maximum Reach (Centre Of Spreader Bar To Front Of The Mast) 32.8 Inches  835 mm
• Turning Radius 55.9 Inches  1420 mm
• Legs Open – External Width 42.5 Inches  1080 mm
• Legs Open – Internal Width 39.3 Inches  1000 mm
• Legs Closed – External Width 26.3 Inches  670 mm
• Legs Closed – Internal Width 22.4 Inches  570 mm
• Overall Height Of Legs 4.5 Inches  115 mm
• Ground Clearance 1.1 Inches  30 mm
• Front Twin Castors 3.0 Inches  75 mm
• Rear Braked Castors 3.9 Inches  100 mm

Weights

• Mast, Base & Boom Assembly 63.1 Ibs 28.9 Kgs
• Power Pack 6.6 Ibs 3.0 Kgs
• Total 69.7 Ibs 31.7 Kgs
• Base Assembly 32.8 Ibs 14.9 Kgs
• Mast & Boom Assembly (Not Including Battery) 30.9 Ibs 14.0 Kgs
