Nova Transit

Features

• Lightweight aluminium construction powder coated folding frame
• Fold down back rest
• Padded arm rests

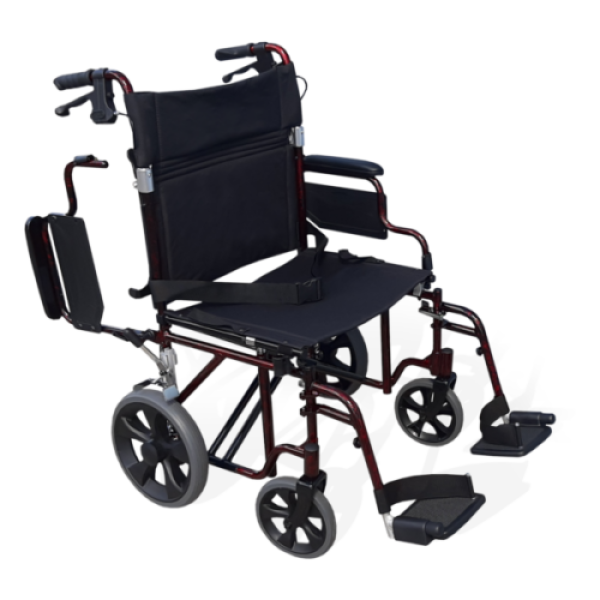

• Lift up armrests
• Removable armrests
• 12” Rear with durable rubber
• 8” Front rubber tyres
• Hard wearing nylon upholstery

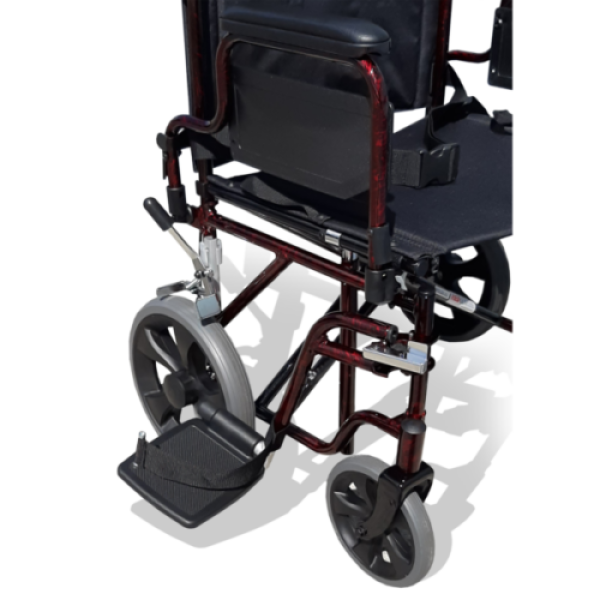

• Swing away leg rests
• Attendant rear control handbrakes
• Manual brake on the rear wheels
• Seat belt fitted
• Rear storage pocket on backrest

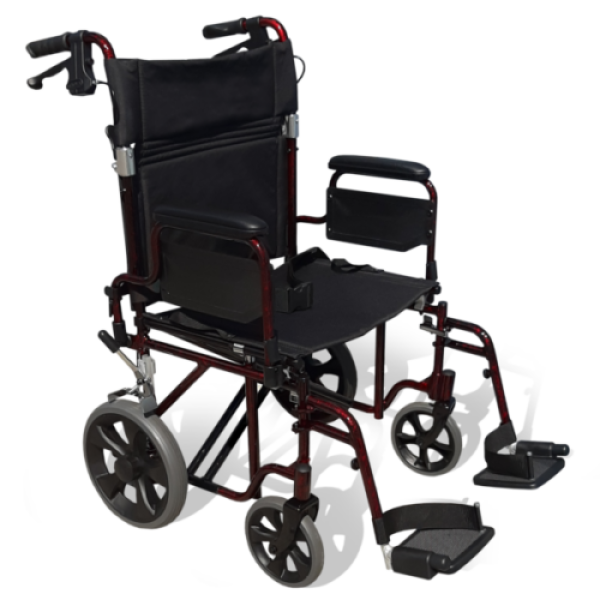

• Available in Red

Specifications

17 Inch

• All dimensions shown are nominal
• Overall: 550mm (W) x 1040mm (D) x 980mm (H)

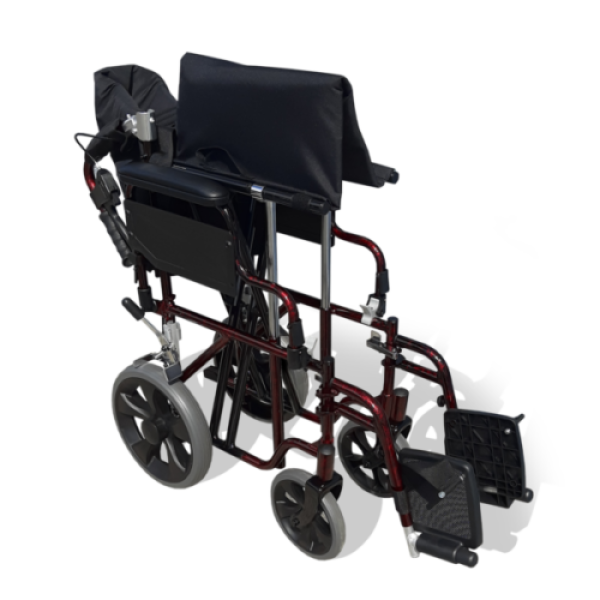

• Folded: 280mm (W) x 650mm (D) x 780mm (H)
• Seat: 410mm int. (W) x 390mm (D) x 500mm (H)
• Armrest Height: 250mm (from seat)
• Backrest Height: 460mm
• Footrest Height: 400 – 500mm (from seat)
• Wheels: Ø200mm / 8” (front) – Ø300mm / 12” (rear)
• Product Weight: 13.5kg
• Max.User Weight: 130kg

19 Inch

• All dimensions shown are nominal
• Overall: 600mm (W) x 1040mm (D) x 1000mm (H)
• Folded: 300mm (W) x 650mm (D) x 800mm (H)
• Seat: 470mm int. (W) x 390mm (D) x 500mm (H)
• Armrest Height: 250mm (from seat)
• Backrest Height: 460mm
• Footrest Height: 400 – 500mm (from seat)
• Wheels: Ø200mm / 8” (front) – Ø300mm / 12” (rear)
• Product Weight: 13.8kg
• Max.User Weight: 130kg

22 Inch

• All dimensions shown are nominal
• Overall: 700mm (W) x 920mm (D) x 1020mm (H)
• Folded: 440mm (W) x 720mm (D) x 820mm (H)
• Seat: 560mm int. (W) x 420mm (D) x 480mm (H)
• Armrest Height: 250mm (from seat)
• Backrest Height: 500mm
• Footrest Height: 380 – 480mm (from seat)
• Wheels: Ø200mm / 8” (front) – Ø300mm / 12” (rear)
• Product Weight: 13.5kg
• Max.User Weight: 180kg
