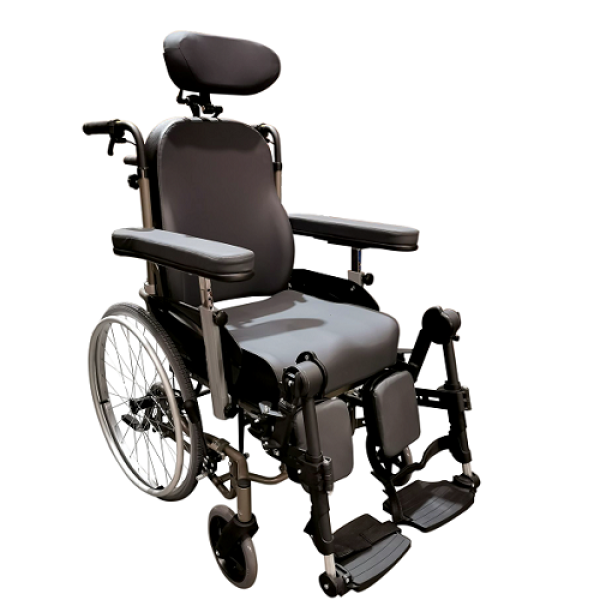

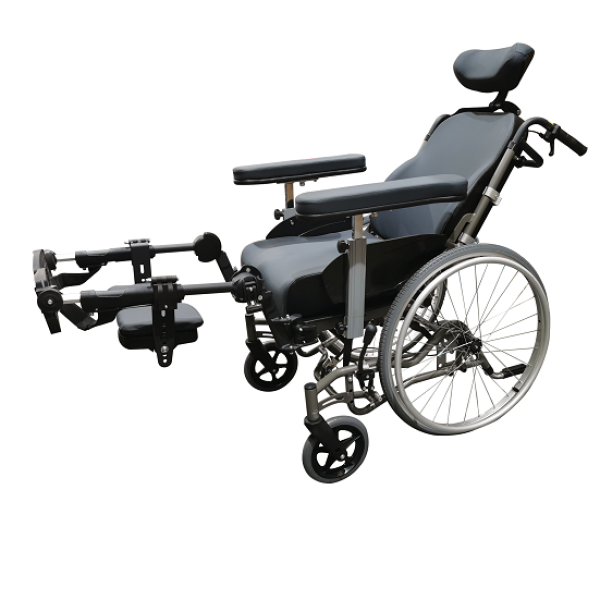

Redgum Onyx Tilt-in-Space Crash Rated SWL 135kg SP 18″ (450mm) Seat

Features

• Seat and backrest are angle adjustable
• Detachable armrests
• Height adjustable armrests
• Elevating, fully adjustable legrests
• Removable height adjustable headrest
• Locking brake with drum hand brake
• Adjustable anti tip caps
• Quick release rear wheels
• Solid tyres
• Pressure reduction padded seat, legs, arms,
• Backrest and headrest support

Specifications

• Overall length: 1030mm (with footrests)
• Overall length: 830 – 870mm (without footrests)
• Overall width: 18″: 612mm – 20″: 750mm
• Overall height 1250mm (with headrest)
• Overall height: 710 – 780mm
• with folded backrest, without armrests)
• Seat width: 18″: 457mm – 20″: 508mm
• Seat depth: 490mm (with cushion)
• Seat height: 570mm
• Backrest height: 550 – 585mm
• Backrest angle: 90˚ – 120˚
• Front Wheels: 8” – 200mm
• Rear Wheels: 24” – 600mm
• Distance between footrest and seat: 280mm (with legrest at default)
• Legrest angle: 30˚ range (200˚ – 230˚)
• Foot plate angle: 80˚ – 100˚
• Static stability downhill: 10˚
• Static stability uphill: 15˚
• Static stability sideways: 12˚
• Obstacle climbing: 60mm
• Product Weight: 38kg
• Maximum Weight Loading: 135kg
